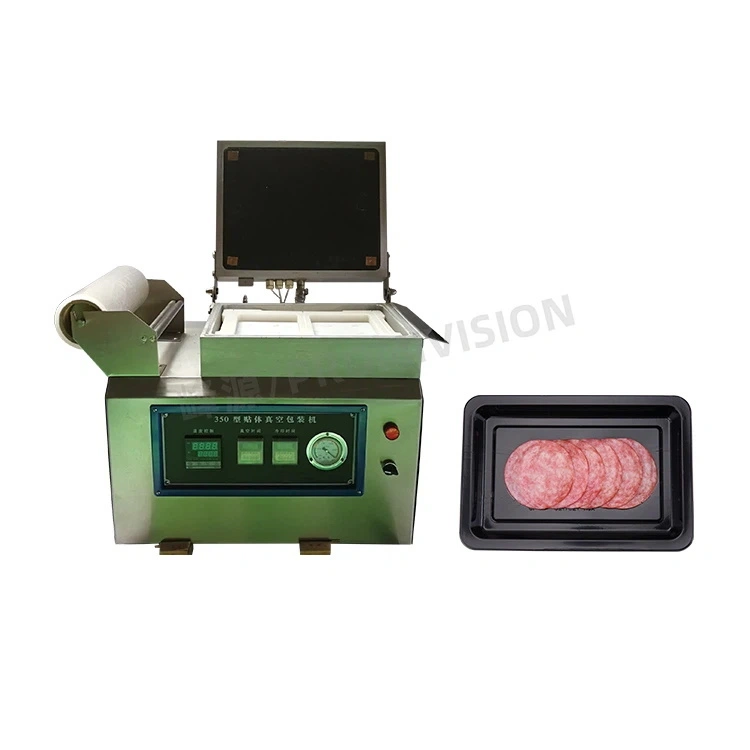

Table Top Mini Skin Packer Food Meat Promivision TB-390
Product Description
The TB-390 Skin Vacuum Packer is developed and manufactured by PROMIVISION, a Chinese packaging equipment manufacturer. With experience in the skin packaging field, the brand ensures its products meet SGS and ROHS environmental standards, and the equipment has obtained CE certification. It adopts mechanical drive and is equipped with a 1HP vacuum pump, along with a 6KW fixed heating oven and a pulse heating system—featuring a special tubular heater arrangement design. The machine can be connected to assembly lines to improve efficiency, offer multiple standard working area sizes, and support custom sizes for diverse packaging needs.
The equipment demonstrates extensive applicability, encompassing sectors from foodstuffs and commodities to medical, hardware, and electronic components, thereby offering efficient vacuum sealing solutions for a wide array of products.
Products Advantages
Product Display
Product Specifications
| PROMIVISION® Full Range of vacuum Skin Packer: | ||||
| Model No. | TB-390 (Economical) |
PV-5540 (Semi-auto) |
PV-4560 (Automatic) |
PV-5580 (Automatic) |
| Working Area | L54*W39*H14cm | L40*W55*H14cm | L60 * W45 *H18CM | L80*W55*H18cm |
| Film Width | 450-460m/m(18") | 609-615m/m(24") | 500-510mm | 609-615m/m(24") |
| Frame Height | Max 19cm | Max 19cm | Max. 23CM | Max 23cm |
| Heater | 6KW | 4.5KW | 6KW | 11.7KW |
| Vacuum Pump | 1HP | 2HP | 4HP | 4HP |
| Speed | 1-3cycle/min | 2-4cycle/min | 2-4cycle/min | 3-4cycle/min |
| Power | 380V,3PH,50/60HZ | 220V,1PH,50/60HZ | 220V,1PH,50/60HZ | 380V,3PH,50/60HZ |
| Dimension LxWxH |
100*90*122CM | 131*77*130CM | 164*120*130CM | 225*153*164CM |
FAQ
